Pot type strainer PSA / PSB

Pot type strainer (Pot filter) complete stainless steel, welded design, strainer element: basket with fine sieve, Standard with flanges according to DIN EN 1092-1 B

  • clean liquid and gaseous media
  • resistant to corrosion by stainless steel components
  • easy cleaning and maintenance
  • compact design and low weight
  • mounting position standing or hanging
  • design according to Pressure Equipment Directive PED 2014/68/EU
  • mesh size for filter elements individually according to customers

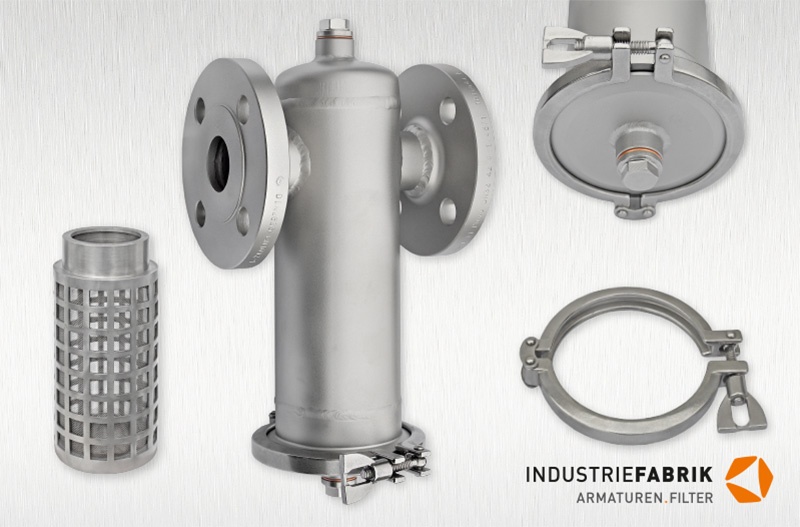

Pot strainer Type PSA

  • Aseptik quick lock by a clamp connection with wing nut according to DIN 32676
  • no tools needed to change filter element
  • to PN10

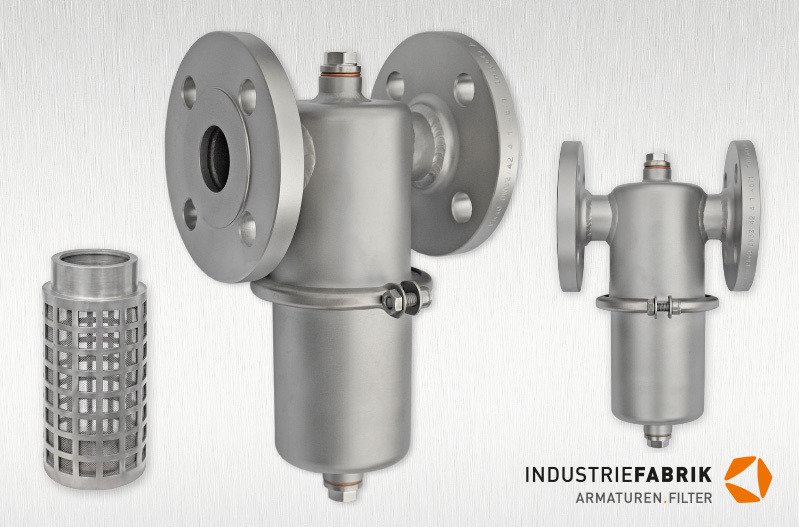

Pot strainer Type PSB

  • Body quick lock (profile clamp with 2 screws)
  • to PN16

Applications

  • Protection fittings and industrial systems, filtration processes with aggressive media, for direct integration into pipe systems, time savings for filter cleaning by body quick lock, lowcost alternative even in small nominal sizes



N. diameter: DN15 ... DN100, more on request
N. pressure: PN10 (Type PSA); PN16 (Type PSB)
Body: deep-draw Stainless steel X2CrNiMo17-12-2 (1.4404 / AISI: 316L)
Basket: Stainless steel X5CrNi18-10 (1.4301 / AISI 304)
Fine sieve: Stainless steel 1.4401
Inner parts: Stainless steel X5CrNi18-10 (1.4301 / AISI 304)
Gasket: EPDM, more on request
Temperature: bis 150 °C, temperature / pressure dependent
Face-to-face: gemäß DIN EN 558 R1, special size possible
Mesh size: 0,05 mm ... 10 mm, more on request
Optional: Ball valves for quick ventilation and draining, Differential pressure display, Thermometer, Butt weld ends
according to DIN EN ISO 1127, External thread according to DIN EN 10226-1 / DIN EN ISO 228-1,
ANSI-flange CL150 according to ASME B16.5, NPT-screwed sockets according to ASME B16.11
